Connettore 9 poli

1.48
91370
47 Articolo(i)
+

Description

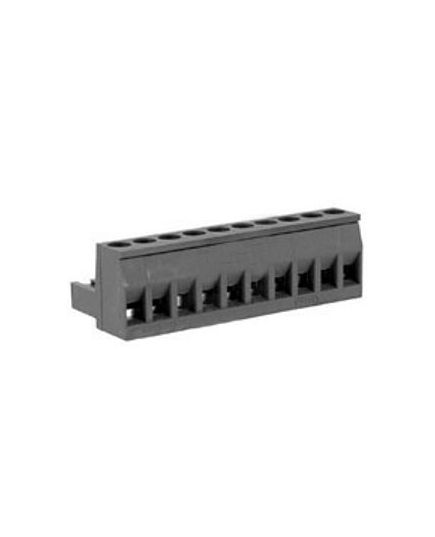

Connettore 9 poli

  • Agency Approvals : UL, CSA, VDE
  • Brand/Series : Conecta®⁄12 Series
  • Color : Gray
  • Connector Type : Plug-In Screw
  • Cross-Section Area : 2.5 mm²
  • Current, Rating : 15, 10 A
  • For Use With : 120-M-111 211, 120-M-311 ⁄-411, 120-M-217, 120-M-181 ⁄-281 and 120-M-151 ⁄-153 ⁄-251 253, 120-M-161 ⁄-163 ⁄-261 ⁄-263 and 120-M-227 Header
  • Length, Stripping : 0.28 in.
  • Material, Body : Polyamide
  • Material, Terminal : Tin Plated Copper Alloy
  • Number of Poles : 9 Poles
  • Pin Spacing : 0.197(5) In.(mm)
  • Primary Type : PCB
  • Temperature Rating : -40 to +105 °C
  • Termination : Screw
  • Torque, Tightening : 4.5 lbfin (Max.), 0.51 Nm (Max.)
  • Type : Pluggable
  • Voltage, Rating : 300 V
  • Voltage, Withstanding : 2500 V
  • Wire Entry : Top/Front
  • Wire, AWG : 26-12
